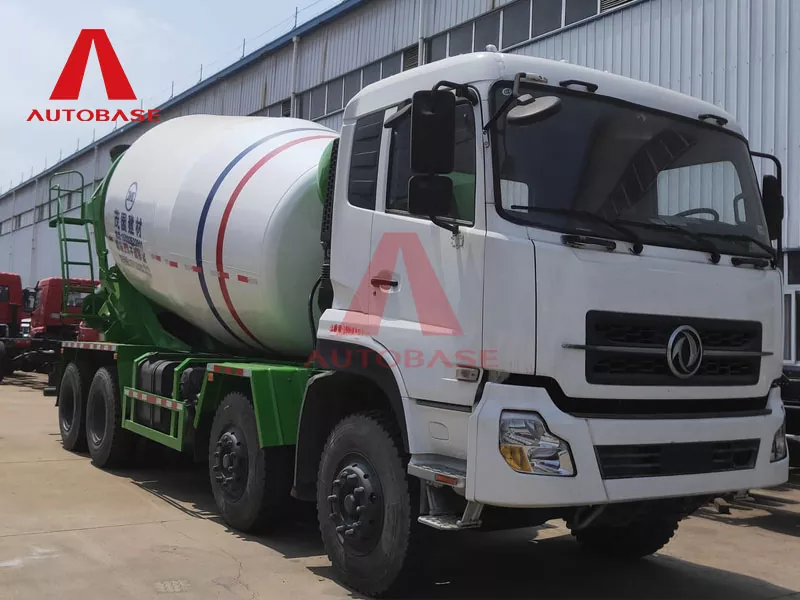

Dongfeng Tianlong CL5250GJB4 Mixer Truck

The Dongfeng Tianlong CL5250GJB4 is a mixer truck designed for medium-sized construction projects, while also capable of meeting the demands of larger-scale operations. It is built on a Dongfeng EQ5250GJBLVJ mixer chassis with a 6×2 drive configuration and features the new Dongfeng Huashen F5 cab. Standard equipment includes a vehicle travel recorder and Tianlong remote central locking. The truck is powered by a Yuchai 4-cylinder, 220 hp engine compliant with China National V emission standards, paired with a Fast Gear 8-speed manual transmission, delivering robust power and fuel efficiency. It incorporates a 280mm double-layer frame, an aluminum fuel tank, air reservoirs, a reinforced 3.6T front axle, a shortened 13T rear axle, and 10.00R20 steel-belted tires. The wheelbase is 1,750 + 2,400/2,600 mm, and overall dimensions are 8,150/8,350 × 2,500 × 3,990 mm, with a curb weight of 9,620 kg.

Send Inquiry

Product Description

This mixer truck offers several standout features. Its stable chassis ensures reliable performance under various complex road conditions. The mixing drum is constructed from high-strength wear-resistant low-alloy steel, with a 5mm drum body and 6mm end caps. The main and auxiliary blades are formed by mold stamping and welded using a modified logarithmic spiral curve design. Through fluid mixing simulation testing, the drum ensures thorough concrete homogenization, reducing loading and unloading time by approximately 30% compared to similar competitors while achieving lower residual material rates. The hydraulic system utilizes imported components such as Sauer-Intrapump and WPMann hydraulic pumps/motors, as well as PMP and Bonfiglioli reducers, ensuring safe and reliable operation. The spacious cab includes a standard air-suspension driver’s seat, an ergonomically designed dashboard, and a modern technological interior, enhancing both operational convenience and comfort.
