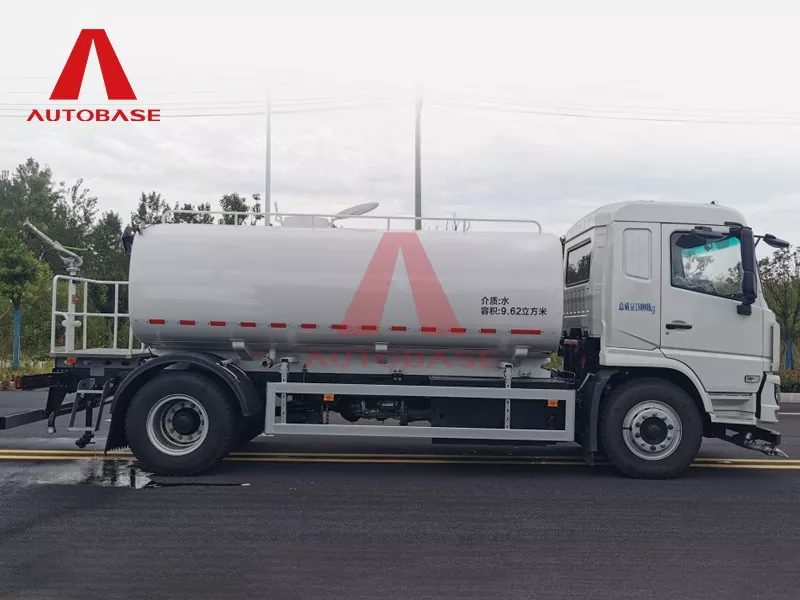

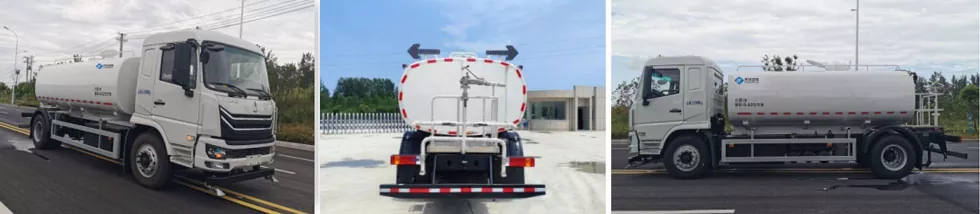

18 Tons Cleaning Truck

1) There is a low-pressure flushing system, including front duckbill flushing, front cone mouth hedging, rear sprinkler, rear water cannon and other operating devices. The front duckbill flushing, front cone mouth hedging and rear sprinkler can be used for flushing and sprinkling operations in roads, squares and other places respectively. The rear water cannon is suitable for long-distance flushing and sprinkling operations.

2) It is not suitable for use in cold weather and easy to freeze.

3) The chassis adopts Geely Remote 18 Tons Cleaning Truck pure electric second-class chassis, which has strong power, strong carrying capacity, advanced technology and reliable quality

4) The drive motor adopts 120/180/CRRC Times motor, and the protection level reaches IP67. The motor has an output efficiency of up to 95%, a peak power of 180kW, a maximum torque of 1100Nm, high reliability and long service life.

5) The electronic control adopts a well-known brand controller, and the protection level reaches IP67. The controller has overvoltage, undervoltage, overcurrent and overheat protection functions

6) The battery uses lithium iron phosphate batteries produced by Ningde Times New Energy Technology Co., Ltd. The battery system has passed strict tests such as vibration, impact, extrusion, wet and hot cycle, seawater immersion, external fire, and overtemperature protection. The battery protection level reaches IP67.

7) The upper body has a power take-off port with a rated speed of 1600r/min. The upper transmission link is compact, efficient and low noise.

8) The 18 Tons Cleaning Truck has a large volume and a long working time. The water tank is optimized by finite element analysis method and has passed strict reliability tests. The water tank adopts advanced one-time canning molding technology, permeation non-destructive testing, no water leakage, long life, and the inside of the water tank adopts epoxy coal tar paint professional anti-corrosion coating to ensure the anti-corrosion effect

Parameter

9) The self-priming two-stage centrifugal pump of a well-known enterprise is adopted, which has high efficiency and good reliability. The rated working speed of the water pump is 1480r/min, the rated working pressure is 1.1MPa, and the rated flow rate is 50m³/h.

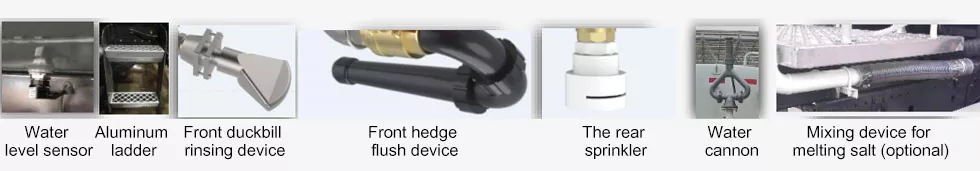

10) The front duckbill flushing device is controlled by a pneumatic shut-off valve and is suitable for flushing road surfaces and curbs. The flushing direction of the duckbill nozzle can be adjusted arbitrarily within a certain range, and the flushing width is not less than

10m.

11) The front flushing device has a cone nozzle on each side, and two-way flushing is controlled by a pneumatic shut-off valve. The two rotating sleeves at the nozzle can be loosened to adjust the nozzle angle at will. The middle flush can flush 6 lanes at a time.

12) The rear sprinkler device uses a pneumatic shut-off valve to control the opening and closing of the rear sprinkler nozzle. When the two rear sprinkler nozzles are opened at the same time, the sprinkler width is not less than 14m.

13) The water cannon is an aluminum long-range water cannon installed on the right side of the rear workbench. The water cannon can rotate 0-360° and the cannon body can be operated up and down. By twisting the adjustment sleeve at the front of the gun body forward and backward, the spray shape of the water flow (column or cone) can be adjusted and the water cannon can be turned off. The water cannon is controlled by a manual ball valve, and the water cannon can be opened and closed at will during work. The range of the water cannon is not less than 38m.

14) The vehicle adopts the control mode of "display screen + controller + CAN bus operation panel". When the operation starts and stops, the opening and closing of the front duckbill, front hedge and rear sprinkler are controlled by the operation box, and the motor speed is steplessly adjusted by the knob.

15) The water tank body is made of Q235B material, the internal wave-breaking plate buffer structure design is adopted, and the chassis adopts a frame structure to ensure the overall structural strength and rigidity.

16) Excellent quality, using a domestic well-known brand chassis, mature technology, wide application, and good reliability and safety. It uses batteries, motors, controllers, and other electrical components of internationally renowned brands, with excellent performance and reliable operation.

17) Equipped with water shortage alarm and electrical system to prevent water pump from running without water. When the water level of the water tank is lower than the designed position, the system will sound a water shortage alarm and automatically stop the low-pressure water pump to prevent the water pump from burning dry.

18) Equipped with high-quality aluminum alloy anti-skid ladder, the operators can step on the aluminum alloy anti-skid ladder to go up and down the rear platform safely and reliably, effectively preventing falls.

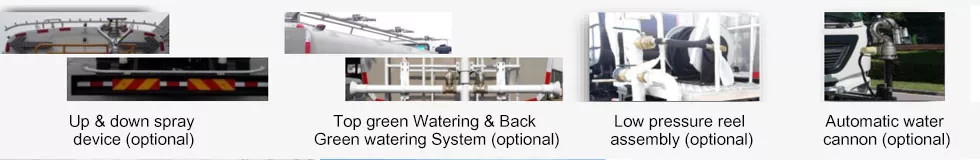

19) Optional function: molten salt stirring device: salt turning, self-stirring, Aksu water tank is required, located below the right side of the rear working platform, can be used for spreading salt water in winter. Upper spray device: spray dust reduction, heatstroke prevention and cooling operation, located at the rear end of the water tank, equipped with stainless steel spray nozzle, good dust reduction and cooling effect. Lower spray device: spray dust reduction, heatstroke prevention and cooling operation, located above the rear guardrail, equipped with stainless steel spray nozzle, large spray flow, good dust reduction and cooling effect.

17) Equipped with water shortage alarm and electrical system to prevent water pump from running without water. When the water level in the water tank is lower than the designed position, the system will sound a water shortage alarm and automatically stop the low-pressure water pump to prevent the water pump from drying out.

18) Equipped with high-quality aluminum alloy anti-skid ladders, operators can safely and reliably go up and down the rear platform on the aluminum alloy anti-skid ladders, effectively preventing falls.

19) Optional functions: molten salt stirring device: salt turning, self-stirring, requires optional Aksu water tank, located below the right side of the rear operating platform, can be used to spread salt water in winter. Upper spray device: spray dust reduction, heatstroke prevention and cooling operations, located at the rear end of the water tank, equipped with stainless steel spray nozzles, good dust reduction and cooling effects. Lower spray device: spray dust reduction, heatstroke prevention and cooling operations, located above the rear guardrail, equipped with stainless steel spray nozzles, large spray flow, good dust reduction and cooling effects.
