18 Tons Washing And Sweeping Vehicle

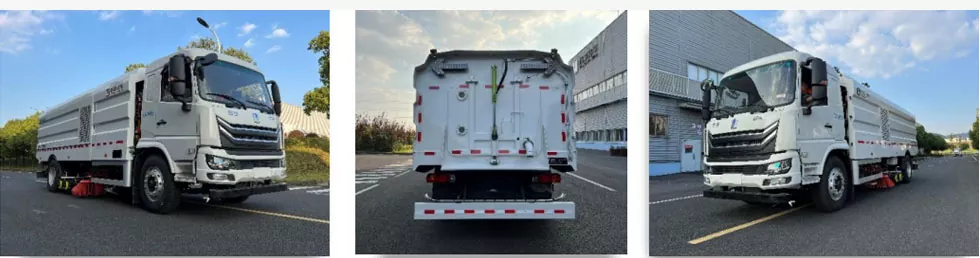

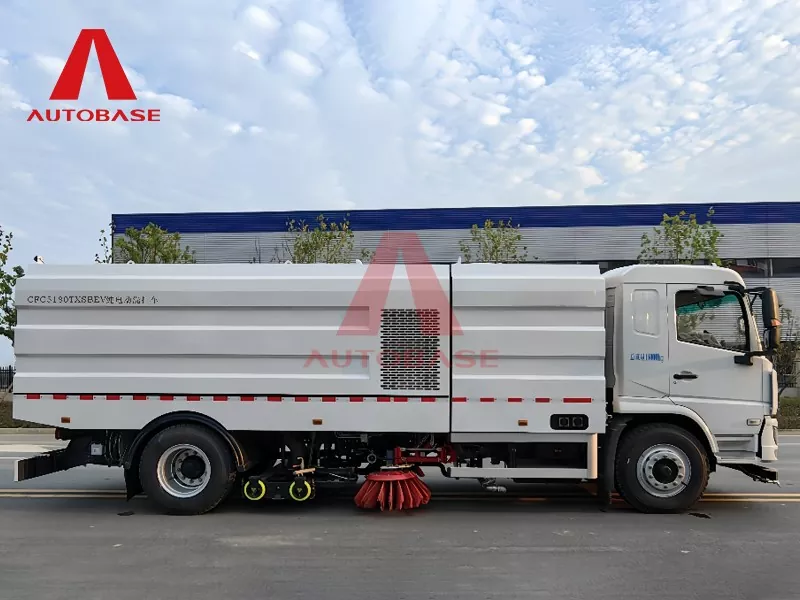

1) The pure electric washing and sweeping vehicle is a multifunctional new generation of sanitation machinery product newly developed by our company (the leader of sanitation industry standards). The vehicle has strong power, strong carrying capacity and zero emissions. The advanced structure combines sweeping, suction and washing, and has good operation effect. One operation, three harvests, road sweeping, high-pressure cleaning of the road surface, garbage and sewage collection are completed at one time. This washing and sweeping function solves the operational difficulties of invisible garbage cleaning, curbs road dust from the source, and restores the original color of the road surface.

2) The chassis adopts the 18 Tons Washing And Sweeping Vehicle type second-class truck chassis of Geely Remote Commercial Vehicle Co., Ltd. The vehicle configuration is advanced, and the motor, battery, and electronic control adopt the industry's first brand assembly vehicle design. It has advanced braking energy recovery, integration, multi-stage shock absorption design, ultra-low speed

stability control (0.5km/h), dual-source steering, intelligent safety shifting and other humanized functions, realizing a new comfortable driving experience with high stability, high reliability, and low noise.

3) The chassis motor adopts a permanent magnet synchronous motor with an anti-condensation motor box structure, which can effectively prevent condensation from forming inside the box. When the motor alternates between hot and cold, it can effectively avoid high-voltage system failures caused by condensation. It is easy to assemble and reliable in operation, and can operate normally in harsh environments such as humidity and rain.

Parameter

4) Chassis battery: It adopts the original battery pack produced by CATL (battery cell, battery module, battery management system constitutes the battery pack). The battery protection level

is high (IP68), which is at the domestic advanced level. It is fireproof, waterproof, extrusion-proof and explosion-proof. It has high safety, long service life and strong reliability

5) The cleaning system of the washing and sweeping vehicle adopts the patented technical structure of "center-mounted two vertical sweepers + center-mounted wide suction nozzle + suction nozzle built-in high-pressure middle spray rod + center-mounted high-pressure side spray rod", and integrates the left and right spray rods with the suction nozzle. The overall structure is advanced, and the ultra-wide suction nozzle increases the width of the dirt suction. The left and right spray rods increase the cleaning width and improve work efficiency. The built-in high-pressure water spray rod can reduce the splashing of water mist and garbage, and reduce the pollution caused by splashing:

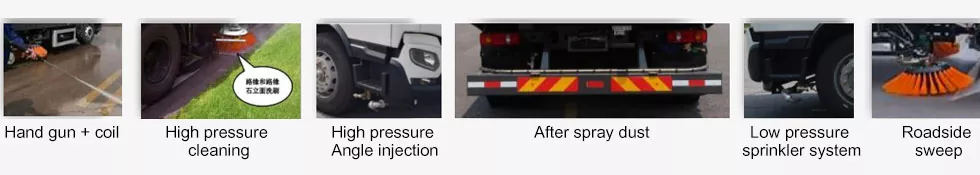

6) The high-pressure water system is mainly composed of water filter, high-pressure water pump, water distribution valve, handheld spray gun, pipeline, etc., which can realize the functions of road washing, spray dust reduction (optional), box self-cleaning, handheld spray gun washing, front high-pressure corner spray (optional), etc.

7) The dust suppression system of the sweeping disc consists of a diaphragm pump, a nozzle and a pipeline. It mainly achieves dust suppression by spraying water mist with a nozzle arranged in front of the sweeping brush. It is generally used in the road sweeping working mode, which can effectively reduce the dust stirred up during the road sweeping operation and improve the working efficiency.

8) The box body includes a clean water box body and a garbage box body. The clean water box body is welded with high-strength carbon steel and the interior is treated with Aksu anti-corrosion spraying technology, with a smooth surface and high strength; the garbage box body is welded with stainless steel plates and adopts the mature process of "large arc surface + corrugated structure". The rear door of the garbage box adopts the "oil cylinder + slide + lock hook" locking mechanism, which is matched with the foam rubber sealing strip and passes the sealing test to eliminate the hidden danger of water leakage; the overall performance of the box is excellent and the quality is reliable.

9) When the rated speed of the fan motor is 2600r/min, the rated power is 50kW. The output shaft of the fan motor and the fan impeller shaft are direct plug-in type, and the impeller is directly driven by the motor to rotate, with efficient output and reduced power loss.

10) One-to-two motors drive the high-pressure water pump and hydraulic oil pump through belt drive. When the motor is rated at 1500r/min, the rated power is 20kW. It is light in weight, low in temperature rise, high in system efficiency, low in loss, high in reliability, and low in maintenance cost.

11) The 7.1 centrifugal fan is adopted, which has the characteristics of high efficiency, low noise, flat performance curve, and wide high-efficiency area. The fan impeller is optimized by CFD simulation, adopts a conical front disc structure, forward-shaped blades, and has excellent aerodynamic efficiency; the blades, impellers and impellers are stamped from low-alloy structural steel, with high strength and good consistency; the impeller and volute are positioned and welded using special welding tooling, and the process is reliable. Each impeller needs to undergo a rigorous overspeed test (exceeding 15% of the design speed), and the dynamic balance level is G2.5, which ensures the smooth operation of the impeller. It is one of the important long-term accessories of the Zhonglian brand road sweeper, with mature technology and reliable operation.

12) The core components of the hydraulic system adopt well-known industry brands, advanced technology, and have the advantages of high product reliability, good sealing, and low system failure rate.

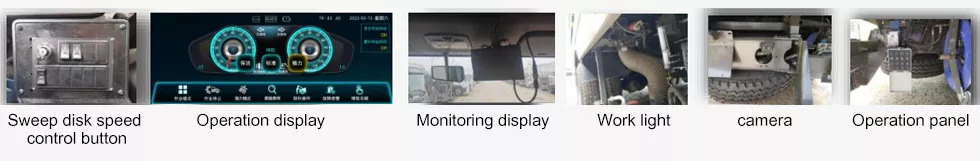

13) The vehicle adopts the control mode of "display screen + controller + CAN bus operation panel". The fault diagnosis of the upper motor and controller can be queried online, and the CAN bus communication failure between the vehicle controller and GPS, motor controller, tail operation box, display screen, and voice alarm can be queried. At the same time, the input/output point status and corresponding line number of the controller can be queried, that is, the status of each actuator can be monitored and fed back in real time. When starting and stopping the operation, the motor speed, suction nozzle lifting, sweeping disc retraction, left and right spray boom retraction and other operating devices can be controlled with one button, and the operation is very simple. The vehicle operation is realized by three operating devices, which are located in two places in the cab and one place on the right side of the rear of the vehicle.

14) The system is set with 10 operation modes: left spray, right spray, full spray, left sweep, right sweep, full sweep, left wash and sweep, right wash and sweep, full wash and sweep, and pure suction. Users can choose the appropriate operation mode to operate according to the operation needs. After the operation mode is selected, one-key start/stop, all the mechanisms involved in the operation will automatically extend and operate in the specified order/stop recovery original state.

15) The upper motor speed control, the working speed of the motor for normal operation is automatically controlled by the electrical system, with a total of 3 gears: "cleaning", "standard" and "strong". And the speed can be adjusted manually, each time ±50r/min. After the system is restarted, the motor speed returns to the default stable (minimum) speed of each gear.

16) The vehicle is equipped with a voice alarm system that can issue a variety of voice alarms and prompt messages during operation and unloading, including voice prompt messages such as "The water tank outlet valve is closed, cleaning operations cannot be performed", "The sewage tank has overturned, please pay attention to safety", as well as multiple music prompt messages and roaring alarm messages, which are convenient and practical.
