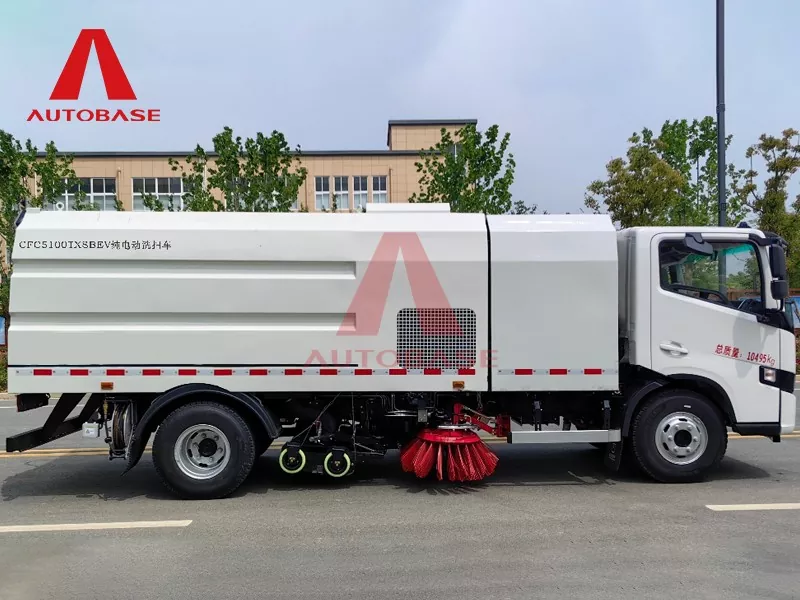

10.5 Tons Washing And Sweeping Vehicle

1) The vehicle integrates the functions of a road sweeper and a high-pressure cleaning vehicle, and has multiple operating functions such as road sweeping, road brushing, high-pressure cleaning, curbstone brushing, garbage collection, sewage recycling, spray dust reduction, road isolation wall cleaning, and small advertisement cleaning.

2) It adopts the structure of "center-mounted two vertical sweepers + center-mounted wide suction nozzle (built-in high-pressure water spray rod) + left and right high-pressure side spray rods".

3) It adopts advanced CAN bus and intelligent one-button control technology. All operations are completed in the cab. When operating, you only need to select the operation mode, and the start and stop of each operation mechanism are automatically controlled by the program. There are 10.5 Tons Washing And Sweeping Vehicle to choose from, including full washing and sweeping operation, left washing and sweeping operation, right washing and sweeping operation, full road sweeping operation, left road sweeping operation, right road sweeping operation, full suction operation, left washing operation, and right washing operation.

4) Highly integrated motion controller with good stability and high safety.

5) A manual control system for the upper motor is added on the basis of one-button control technology, which can independently adjust the motor speed according to the road conditions, effectively enhance the cleaning effect and reduce power consumption.

Parameter

6) Up to 16 voice prompts and music alarms, accurately broadcast various safety prompts and fault points.

7) Equipped with a reversing protection device. In case of emergency reversing during operation, the intelligent control system will automatically stop the operation and retract the sweeping disc, suction cup and side spray rod; it has a protection to prevent the lifting of the garbage bin from overturning; it has maintenance safety protection.

8) Equipped with a garbage bin lifting safety protection device to ensure that the garbage bin cannot be lifted when the rear door is not opened.

9) When the safety rod is not lowered, the intelligent system will prohibit the garbage bin from returning to its position, which can effectively prevent accidents during maintenance.

10) It adopts a central full-floating double suction port ultra-wide suction nozzle with a suction port diameter of 180mm. Its built-in

long row of high-pressure water spray bars has a small ground clearance and a large water flow impact force, which can directly send sewage to the suction port, with less splashing during operation and a high sewage suction rate.

11) The whole vehicle adopts a rib structure to effectively reduce its own weight and enhance the strength and rigidity of the garbage bin; the whole vehicle adopts an integral structure for easy maintenance; and the appearance is beautiful.

12) The rear door closing and locking mechanism adopts a latch type, which has good stability and good airtightness. The acrylic observation window can maximize the visible amount of sewage in the garbage bin.

13) The high-pressure water pump adopts a pump imported from Germany. When the high-pressure water pump starts and the working water valve is switched, the water pump can automatically unload. Through the triple protection of empty circulation, safety valve and overflow valve, it can effectively prevent the high-pressure water pump from being damaged.

14) High-quality hydraulic motors can ensure the stability of the sweeping disc rotation and long service life.

15) Taiwan Northern Precision Machinery Hydraulic Valve Group, CNC Cold-bent Precision Seamless Steel Pipe, and optimized ferrule-type joints ensure the stability and smoothness of the hydraulic action of the whole vehicle.

16) The hydraulic system gear pump adopts domestic high-quality pumps with reliable performance. The manufacturer of valve parts is an internationally recognized professional hydraulic component manufacturer. 17) A manual pump can be added to the hydraulic system so that when the system encounters special circumstances, such as the auxiliary engine cannot work normally, the manual pump can be used to complete the garbage dumping and reset of each hydraulic cylinder. It has the function of preventing hydraulic leakage.

18) The sewage tank adopts a large flat slope structure, and the maximum unloading angle can reach 50 degrees, which is easier to dump garbage. The sewage tank is equipped with an anti-overflow alarm device and a high-pressure spray cleaning device. The anti-overflow alarm device can prevent sewage from overflowing from the suction pipe during operation, causing secondary pollution; the high-pressure spray cleaning device can automatically clean the sewage tank after dumping the garbage, which greatly reduces the labor intensity of the operator.

19) The garbage tank is made of 3mm stainless steel, which can prevent general corrosion and extend the service life.

20) The clean water tank is equipped with a low water level sensor alarm system, which automatically alarms when there is no water to prevent the water pump from being damaged by lack of water.

21) A mechanical automatic winding and flushing reel is installed at the rear side, equipped with a 20m high-pressure hose and cleaning guns at different angles, which can be used to clean the car body and other equipment and facilities.

22) A high-definition monitoring probe is installed at the right sweeping disc and the rear of the garbage bin, and a high-definition LCD display is installed in the cab. The screen can be switched to the right sweeping disc position and the rear of the garbage bin respectively to monitor the sweeping disc operation condition and the whole vehicle operation quality.

22) A high-definition monitoring probe is installed at the right sweeping disc and the rear of the garbage bin, and a high-definition LCD display is installed in the cab. The screen can be switched to the right sweeping disc position and the rear of the garbage bin respectively to monitor the sweeping disc operation condition and the whole vehicle operation quality.

23) High-performance engineering plastic spacers are used in the sweeping disc brush arm, which has good wear resistance, does not require grease and maintenance, and saves manpower and material resources.

24) Double-layer stainless steel dust collector is convenient for replacement after long-term wear of the dust collector.
