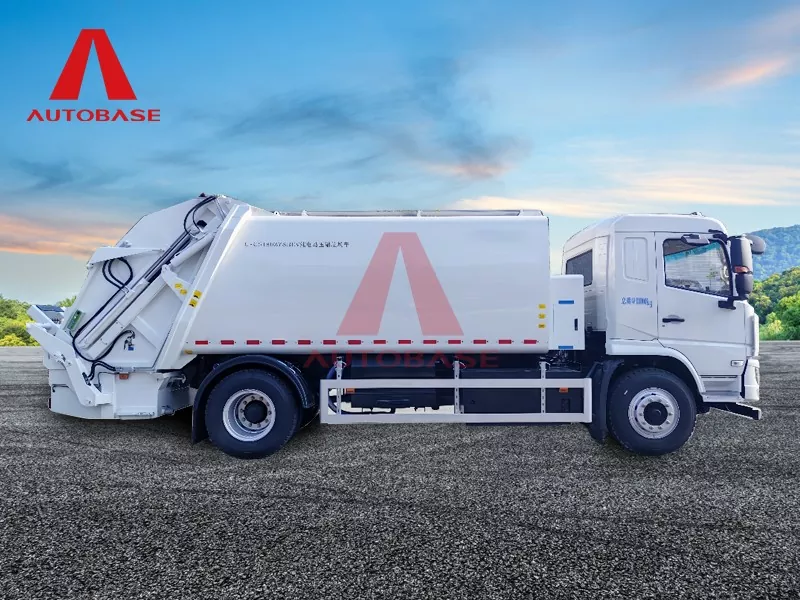

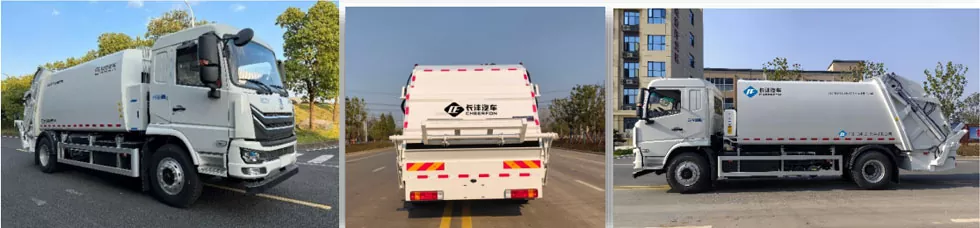

18 Tons Compression Garbage Truck

1) It has multiple functions such as garbage collection, automatic loading and compaction of garbage, garbage transfer and dumping.

And the collection and transfer of bulk domestic garbage.

3) The chassis is modified from the DNC1187BEVGNJ1/pure electric

Class II chassis produced by Geely Commercial Vehicle Co., Ltd. It has strong power and strong carrying capacity. This 18 Tons Compression Garbage Truck is currently one of the domestically advanced and reliable new energy commercial vehicle chassis.

4) Upper structure

A. Pusher: The pusher is welded from high-quality profiles and high-quality carbon steel panels. It is the component for the product to perform unloading. The pusher is arranged inside the garbage bin and slides along the garbage bin track under the drive of the three-stage hydraulic cylinder to complete the unloading operation.

B. Trash bin: The trash bin is the component of this product for collecting and storing domestic waste, and is also the connecting matrix of important components such as the filler. Its reasonable structural design and material selection ensure the optimization of product performance; the key parts of the inner cavity are made of high-quality weathering steel with strong corrosion resistance, which has high ultimate strength, strong corrosion resistance and long service life, and is especially suitable for corrosive working environments; the side panels adopt the whole plate forming technology, and the curved surface design improves the overall frame rigidity while increasing the aesthetics; the bottom of the trash bin is designed with a filler locking mechanism.

C. Filler: The filler is the component of this 18 Tons Compression Garbage Truck for compressing and reducing the volume of domestic waste. The compression mechanism on the filler compresses the garbage in the filling bucket and fills it into the trash bin through the sliding motion of the skateboard and the rotation of the scraper. A sewage tank is designed at the bottom of the filler to improve the sewage storage capacity of the product; the front end of the filler is equipped with a horseshoe-shaped sealing strip, and forms a sealing structure with the rear end of the trash bin to effectively prevent sewage leakage; the key parts of the filling bucket are made of high-hardness wear-resistant steel, which improves the durability of the product.

D. Loading mechanism: The loading mechanism is a component that pours the garbage from the trash can into the filling bucket. If the loading structure is a bucket-turning type, the component can adapt to trash cans of different volumes according to the different volume specifications of the trash can. The process of pouring garbage into the filling bucket is driven by a hydraulic cylinder to drive a four-link machine.

E. Filler cover: The filler cover is used to cover the filling bucket to prevent garbage from scattering and odor leakage. The filler cover is opened and closed by cylinder drive.

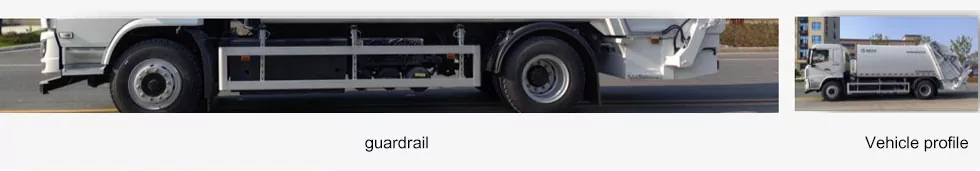

F. Guardrail assembly: The guardrail assembly is assembled from aluminum alloy, with a simple and beautiful appearance, equipped with a flip bracket for easy maintenance.

Parameter

5) Superior product performance A. Strong loading capacity and high operating efficiency It adopts advanced two-way compression technology, has strong compression capacity, and is in a leading position in the industry. The loading time is short, the cycle time of the loading operation and the cycle time of the unloading operation are short, and the garbage collection and transportation process is efficient and fast, which is in a leading position in the industry. B. High adaptability and reliability of the feeding mechanism

The feeding method covers the main forms of domestic garbage collection. At the same time, the original four-bar mechanism layout makes the hanging bucket height adaptable to a wide range and adapts to the regional differences of garbage bins, ensuring the high reliability of the feeding process.

C. Independent locking mechanism and good sealing technology

In order to ensure the sealing of the rear end of the garbage bin and prevent sewage from flowing out, an innovative independent locking technology is designed to lock the filler. The sealing strip at the joint surface between the rear end of the garbage bin and the filler is always compressed, ensuring the good sealing performance of the joint surface between the filler and the garbage bin. At the same time, the sealing strip is innovatively designed into a horseshoe structure, using special rubber material, with good sealing performance, effectively eliminating secondary pollution.

D. Unique filler track design

The filler slide track adopts a special profile integral molding design, with high rigidity and strength, good bearing capacity and long service life.

E. Good environmental protection

The cover of the filler completely covers the feeding port of the filler, eliminating the phenomenon of flying garbage dust caused by the air flow disturbance at the rear of the vehicle during the transfer process, and reducing odor pollution.

F. Humanized operation control

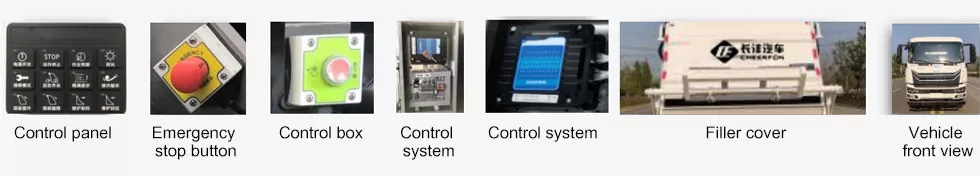

The operation control box is installed in the cab and the rear of the filler respectively. The control panel field in the cab allows operators to complete unloading without getting off the vehicle. The operation of the compression mechanism and the feeding mechanism is very convenient to use and operate; especially in landfill.

6) Excellent quality

A. Strong corrosion resistance and wear resistance

The key parts of the product's garbage bin are made of high-quality weathering steel with strong corrosion resistance, high ultimate strength, strong corrosion resistance, and long service life, especially suitable for corrosive working environments. The key parts of the filling bucket are made of high-hardness wear-resistant steel, which improves the durability of the product.

B. High-quality key components

The key components of the electrical system and hydraulic system are all well-known domestic and foreign brands, such as: proximity switches, buttons, cylinder seals, etc., which improve the reliability of the garbage truck.

C. Guardrail

The side guardrail is assembled from aluminum alloy and has a beautiful appearance.

D. High-quality multi-way valve

The product is equipped with a high-quality, low-noise multi-way valve, which can effectively eliminate the fluid impact noise at the moment of hydraulic reversing, and improve the current problem of disturbing people when garbage truck products are operating.

Advanced control technology Different from the traditional PLC control mode commonly used in the industry, the product

draws on foreign advanced and mature technology in control mode, adopts the current advanced "CAN bus + dedicated controller mode", with high automation, good reliability, low failure rate and long service life.

The engine power output control, that is, the throttle control, is fully automatically controlled through the electrical system to ensure that the engine can automatically select the acceleration and idling states in the various operating states of the garbage truck, avoiding power loss and system heating, low energy consumption and good economy.

7) Safe and reliable

A maintenance safety button is installed on the side of the garbage bin to prevent the loader from falling due to misoperation after it is lifted, which threatens personal safety; the product is equipped with an alarm device, which can alarm and remind operators to operate with caution when performing safety-related operations; a safety support rod is installed on the loader to prevent the loader from falling and injuring people; the emergency stop buttons on the left and right sides of the loader can stop the compression mechanism of the garbage truck in any state or any position to ensure the safety of operators and equipment; the product is affixed with safety labels to guide operators to operate safely.
