1) It can realize multiple functions such as spray dust suppression and cleaning. The spray system has strong wind, good atomization effect and wide coverage. The low-pressure cleaning system is equipped with front duckbill flushing, central cone nozzle flushing, rear watering, rear greening irrigation and rear operation water cannon.
2) The chassis is modified from the 25 Tons Multifunctional Dust Suppression Vehicle second-class vehicle chassis produced by Geely Remote Co., Ltd., with good maneuverability, chassis power of 281.91kWh and high energy density. This chassis is currently the most advanced and reliable electric commercial vehicle chassis in China.
3) The chassis motor adopts 120/180/CRRC Times motor with a rated power of 80kw and a rated speed of 1270r/min.
4) The total volume of the water tank is 10.3m³ and the effective volume is 9.9m³. Made of Q235B high-quality carbon steel, the tank body material thickness is 5mm, the head thickness is 5mm, and the tank is welded; finite element analysis is used to achieve lightweight on the basis of reliable structural strength; standard Zhanchen paint has good anti-corrosion effect.
5) The wind gun water supply and low-pressure water circuit share a water pump. The newly designed "bullet-shaped airfoil guide low-noise impeller wind gun" has low operating noise and high efficiency, with a spray distance of up to 120m and a pitch angle range of -10° to 60°.
6) Low-pressure cleaning system. The low-pressure water pump is driven by the motor, and the power is not taken through the chassis, so the operating speed is not limited. It is equipped with front duckbill, central cone flushing nozzle, rear sprinkler, rear irrigation, and water gun functions to meet the needs of different working conditions.
7) The vehicle adopts "CAN bus distributed control, in-vehicle authority allocation, and multi-point operation". The integrated control box and display screen in the cab can control all the operating functions of the vehicle. When it is necessary to perform some operation control outside the cab, you can switch to the "remote control" or "bus panel" for operation.
| Main configuration parameters | unit | parameter |

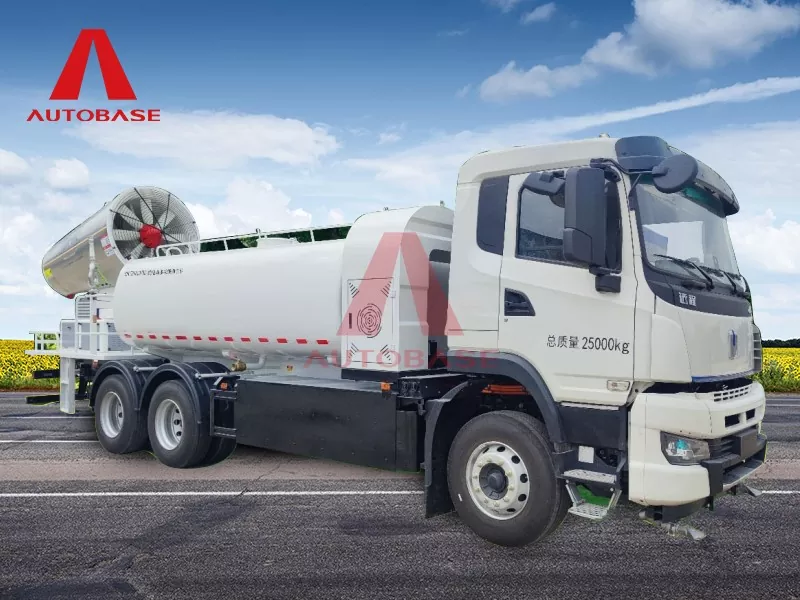

| Product Name | / | CFC5250TDYBEV pure electric multifunctional dust suppression vehicle |
| Chassis | / | Geely Yuancheng pure electric chassis-DNC1257BEVGNJ3 |
| power | / | Pure Electric |
| Maximum allowable total mass | kg | 25000 |
| Total power storage | kWh | 281.91 |
| Wheelbase | mm | 4500+1350 |
| Dimensions | mm | 11470×2550×3880 |
| Total capacity of tank/effective volume of tank | m³ | 10.3/9.9 |
| Maximum effective spray range | m | ≥120 |
| Spray pitch angle/spray rotation angle | o | -10~45/-90~90 |
| Duckbill flushing width/cone flushing width | m | ≥10/≥24 |
| Rear sprinkler width/rear greening spraying width | m | ≥14/≥14 |
| Water gun range | m | ≥38 |

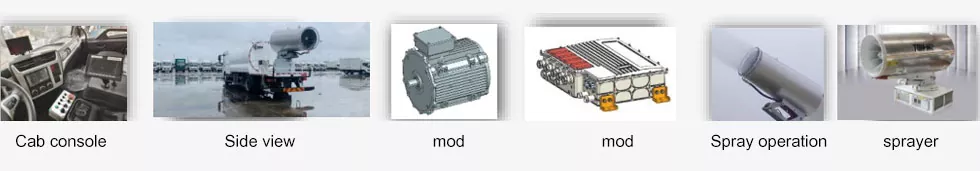

8) The integrated control box is located on the right side of the driver's seat and is used to control the various actions of the blasting operation or cleaning operation. 9) The bus panel is located at the bottom right of the rear working platform and is mainly used to control the actions of the blasting operation.
10) Color video rearview system, with a camera installed at the rear of the vehicle and a color display screen installed in the cab. When the blasting operation is in progress, the operating status of the blasting cannon can be monitored in the cab to avoid collisions.
11) The water tank adopts finite element analysis to achieve lightweight on the basis of reliable structural strength; it is standardly equipped with Aksu paint and has good anti-corrosion effect. A low water level alarm is set to prevent the water pump from being damaged due to waterless operation.
12) The spray system adopts a newly designed "bullet-shaped airfoil guide low-noise impeller wind cannon". The combination design of the bullet-shaped guide inner cone and the arc-shaped guide plate ensures that the airflow is efficiently converted in the wind tube, reducing energy loss and fuel consumption.
13) The fan speed is divided into two modes: "standard" and "strong" to meet the needs of different spray distances.
14) The accessories are highly configured, and the main parts use well-known brands with excellent quality and high reliability.
The chassis adopts the electric vehicle chassis produced by Geely Remote, and the upper motor, controller, hydraulic pump and main oil line hose are all well-known brand products.
15) It is equipped with multiple safety protection devices and alarm systems. Each sensor monitors the working status of the upper installation in real time: water tank water level, upper motor speed, and displays information on the display screen, and timely warning of faults; the camera and the color display screen in the cab facilitate operators to monitor the status of the wind cannon in real time to avoid collisions. Warning lights, safety stickers, work music and other multiple methods are used to remind pedestrians around to pay attention to avoid. 16) Easy maintenance. The vehicle's various drain ball valves, air valves, hydraulic valves, solenoid valves, etc. are all arranged in a position that is convenient for personnel to operate and repair.

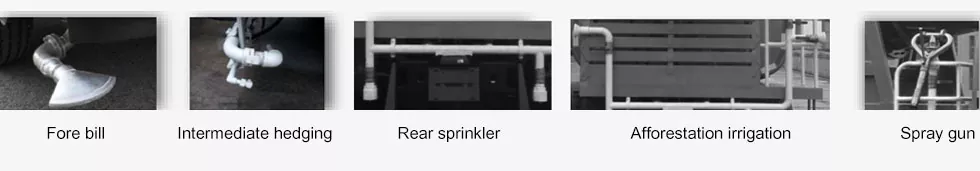

17) Diverse functions. The vehicle is equipped with a high-performance spray system and a full-featured low-pressure cleaning function, including duckbill flushing, cone nozzle hedging, rear sprinkler nozzle, greening irrigation nozzle, and water gun.
18) Spray device: used for spray dust reduction, spray distance ≥120m in static wind, spray flow ≥120L/min, pitch angle -10°～60°, rotation angle -90°～90°, number of nozzles 50.
19) Front duckbill: used for cleaning the road surface, flushing flow 970L/min, flushing width ≥10m.
